ROV Buckets
IS0 13628-8 ROV buckets
The subsea ROV torque tool bucket dimensions are designed according to subsea industry codes as API 17D, API 17H, and ISO 13628-8 standard torque tool interfaces. The buckets or receptacles cover the complete range of subsea torque tools and operation class 1 through 4, class 5, class 6 and class 7.
There are two ROV bucket designs: one standard with a circular top support plate and one with a rectangular top support plate. For ball valves application, an end stop with a quarter turn capability and position indicator could be integrated into the design. Special ROV bucket designs can be made upon request.
![](https://subseadesignas-1a14b.kxcdn.com/wp-content/uploads/2023/11/ROV-Buckets-gen3.webp)
ROV Bucket TYPES
ROV Bucket with circular top support plate
![](https://subseadesignas-1a14b.kxcdn.com/wp-content/uploads/2023/07/Standard-ROV-Bucket-1024x838.webp)
Technical data for ROV bucket, CLASS 4
Design code | ISO 13628-8 |
Size pipe | 168.3 mm diameter |
Height | 194 mm |
Width | 270 mm |
Length | 194 mm |
Weight | 12.2 kg |
Coating | Xylan |
![](https://subseadesignas-1a14b.kxcdn.com/wp-content/uploads/2023/07/CP-3D.webp)
Document | Download link |
---|---|
Product datasheet | click here |
ROV Bucket with circular top support plate
![](https://subseadesignas-1a14b.kxcdn.com/wp-content/uploads/2024/04/ROV-Bucket-CL5-fr.webp)
Design code | ISO 13628-8 |
Size pipe | 216 mm diameter |
Height | 219 mm |
Width | 360 mm |
Weight | 23.5 kg |
Coating | Xylan |
![](https://subseadesignas-1a14b.kxcdn.com/wp-content/uploads/2024/04/ROV-Bucket-CL5-ISO.webp)
Document | Download link |
---|---|
Product datasheet | click here |
ROV Bucket with rectangular top support plate
![](https://subseadesignas-1a14b.kxcdn.com/wp-content/uploads/2023/07/Plate-ROV-Bucket-1024x838.webp)
Technical data for ROV bucket, CLASS 4
Design code | ISO 13628-8 |
Size pipe | 168.3 mm diameter |
Height | 194 mm |
Width | 270 mm |
Length | 197 mm |
Weight | 10.5 kg |
Coating | Xylan |
![](https://subseadesignas-1a14b.kxcdn.com/wp-content/uploads/2023/07/ROV-RTP-Iso2.webp)
Document | Download link |
---|---|
Product datasheet | click here |
ROV Bucket with short position indicator and circular top support plate
![](https://subseadesignas-1a14b.kxcdn.com/wp-content/uploads/2023/11/ROV-Bucket-SI-front.webp)
Technical data for ROV bucket, CLASS 4
Design code | ISO 13628-8 |
Size pipe | 168.3 mm diameter |
Height | 194 mm |
Width | 270 mm |
Length | 194 mm |
Weight of bucket | 10.8 kg |
Coating | Xylan |
Weight of indicator | 0.2 kg |
Document | Download link |
---|---|
Product datasheet | click here |

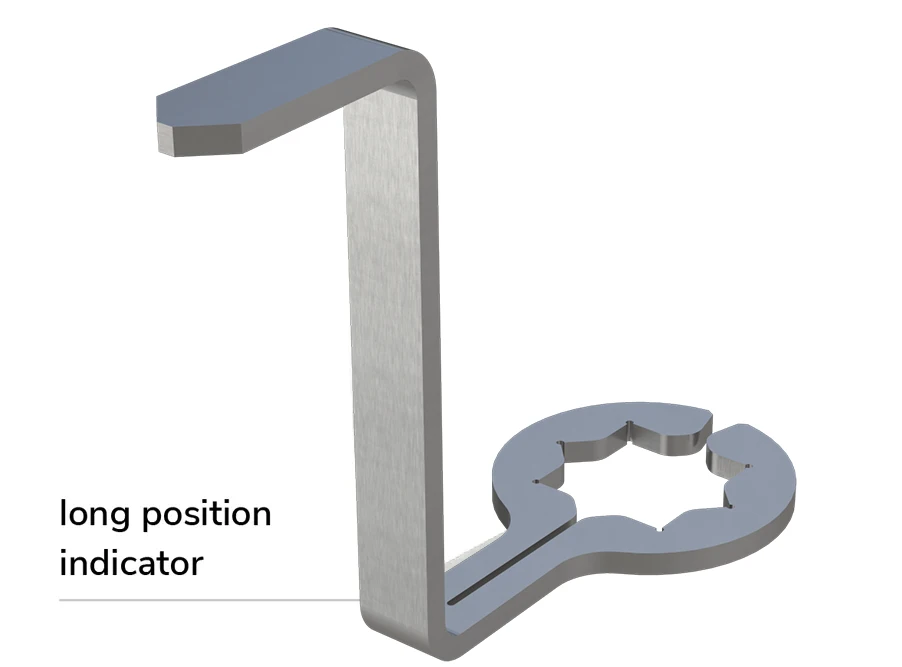

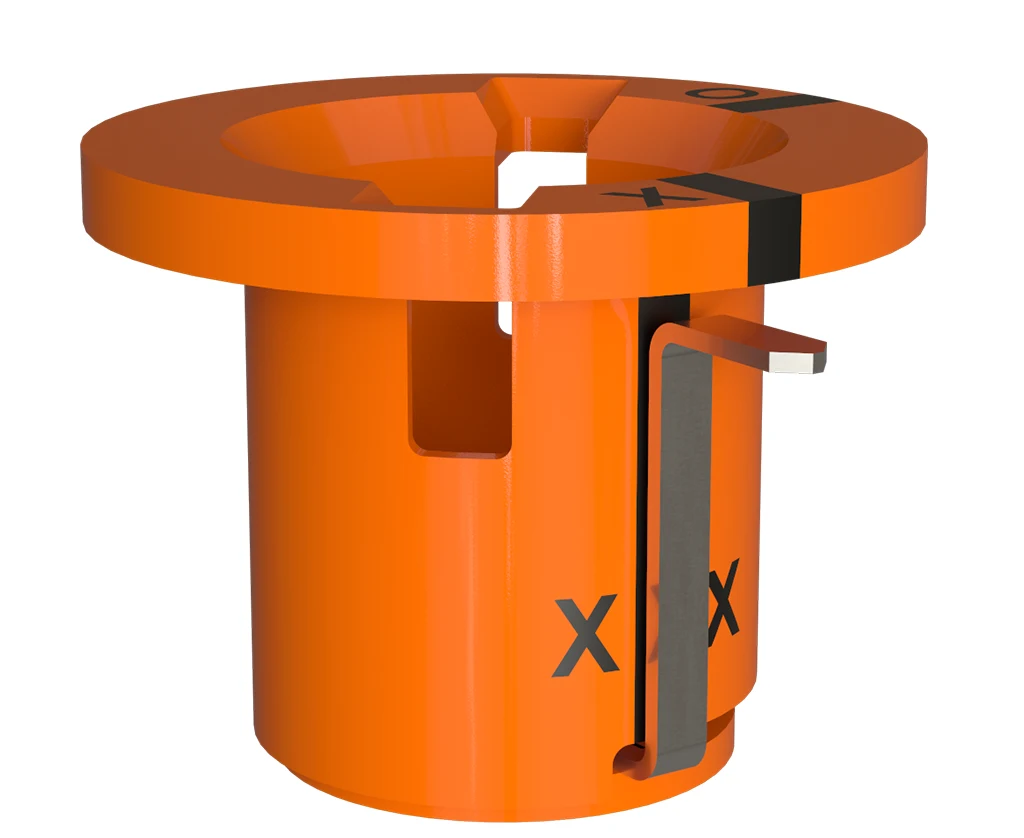

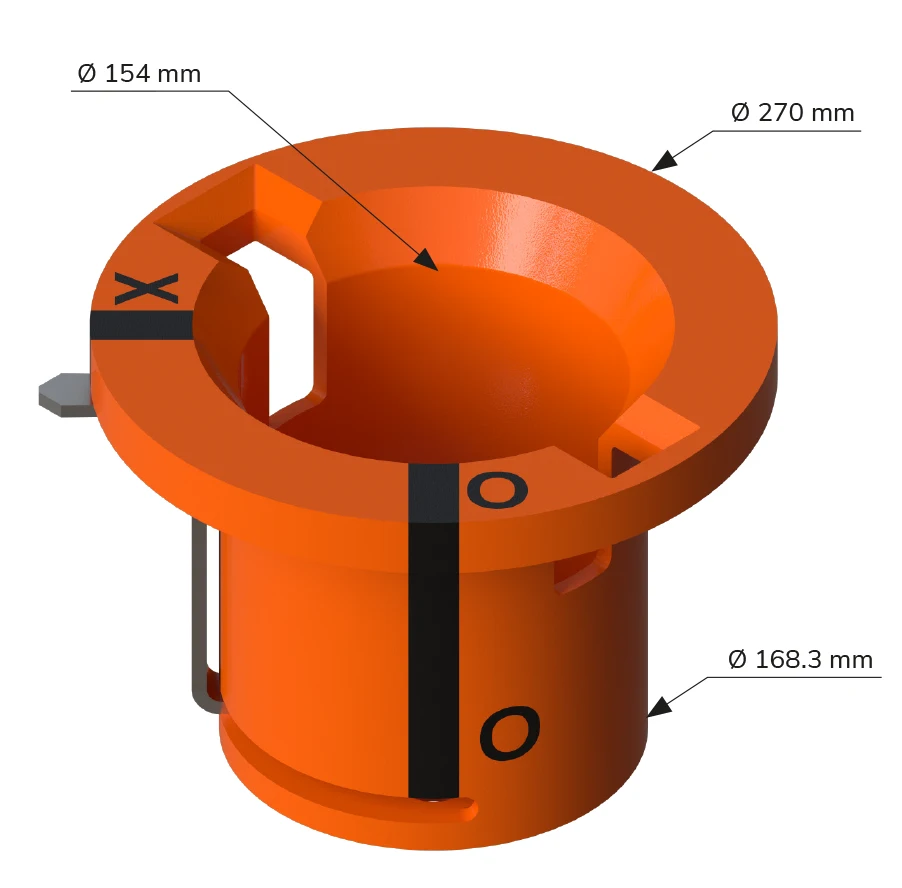

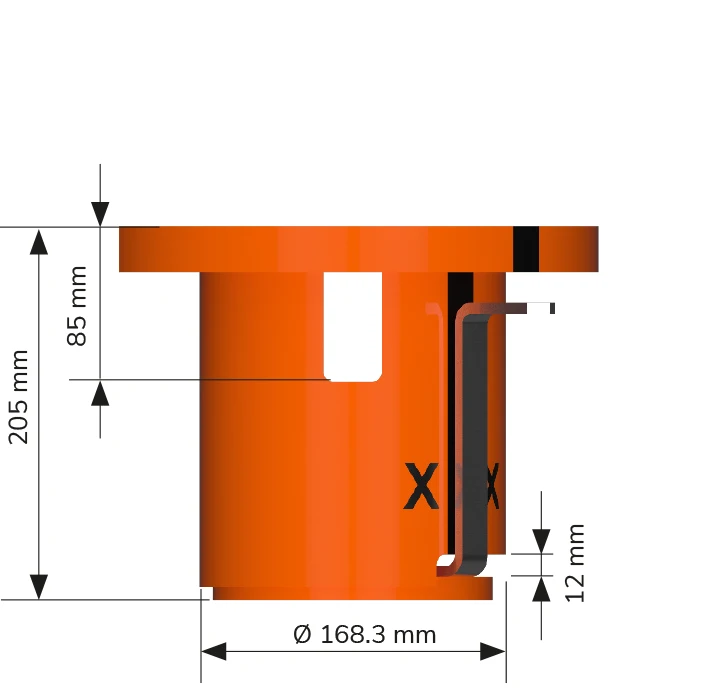

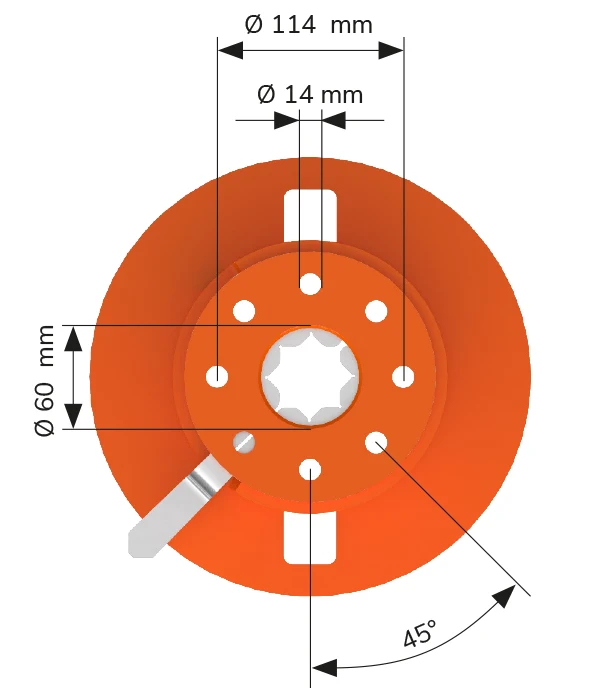

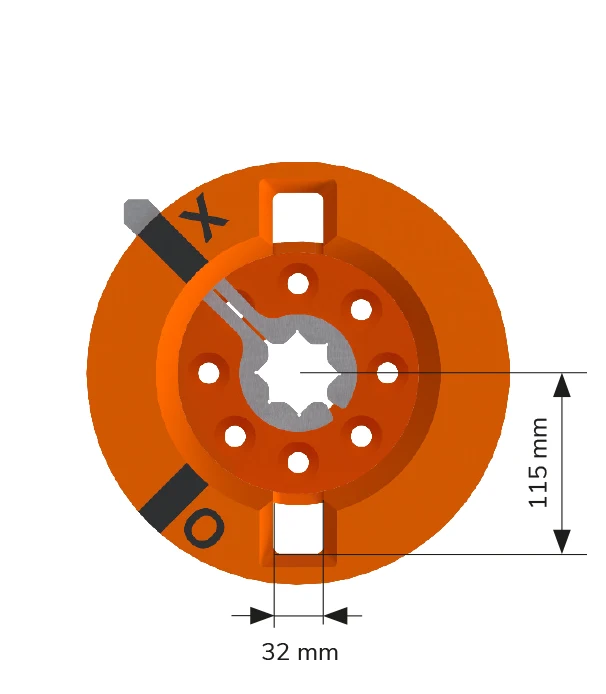

ROV Bucket with long position indicator and circular top support plate
![](https://subseadesignas-1a14b.kxcdn.com/wp-content/uploads/2023/11/ROV-Bucket-LI-front.webp)
Technical data for ROV bucket, CLASS 4
Design code | ISO 13628-8 |
Size pipe | 168.3 mm diameter |
Height | 194 mm |
Width | 270 mm |
Length | 194 mm |
Weight of bucket | 10.8 kg |
Coating | Xylan |
Weight of indicator | 0.5 kg |
Document | Download link |
---|---|
Product datasheet | click here |
